AM-320240NSTNQW-01H is a 5.7" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-320240NSTNQW-01H supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×13(D) mm, viewing area size of 118.2(W)×89.4(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-320240NSTNQW-01H can provides 500 cd/m² display brightness 170:1 transimissive contrast ratio, 70/70/55/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 52% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-320240NSTNQW-01H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-320240NSTNQW-01H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
5.7 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
320(RGB)×240 (QVGA) 70PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
115.2 × 86.4 (H×V) |
|
Outline(mm) |
144 × 104.6 × 13 (H×V×D) |
|
Bezel Area(mm) |
118.2 × 89.4 (H×V) |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
170 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/55/35 (Typ.)(CR≥10) |
|
Response |
15/35 (Typ.)(Tr/Td) ms |
|
Good View at |
12 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 52% NTSC |
|
Backlight |
WLED , 50K hours , No Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

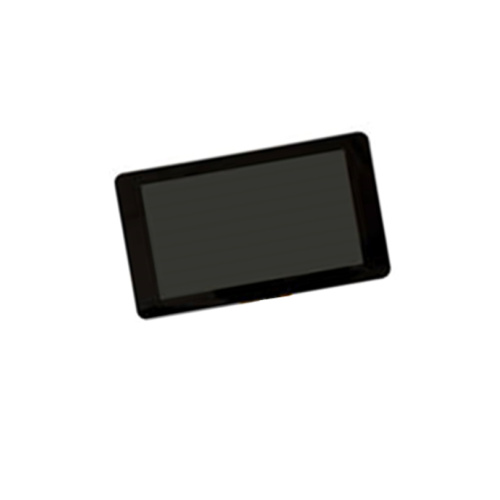

Product Picture:
