AM-640480G2TNQW-01H AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-640480G2TNQW-01H is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20131203 which was released out on 12 3 2013, AM-640480G2TNQW-01H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×6.9(D) mm, viewing area size of 118.0(W)×89.2(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480G2TNQW-01H can provides 500 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. AM-640480G2TNQW-01H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC/VDD). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-640480G2TNQW-01H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
5.7 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
640(RGB)×480 (VGA) 141PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
115.2 × 86.4 (H×V) |
|
Outline(mm) |
127 × 98.43 × 6.9 (H×V×D) |
|
Bezel Area(mm) |
118.0 × 89.2 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
250 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Response |
50 (Typ.)(Tr+Td) ms |
|
Good View at |
12 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 50% NTSC |
|
Backlight |
WLED , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Voltage Supply |
3.3/5.0V (Typ.)(VCC/VDD) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

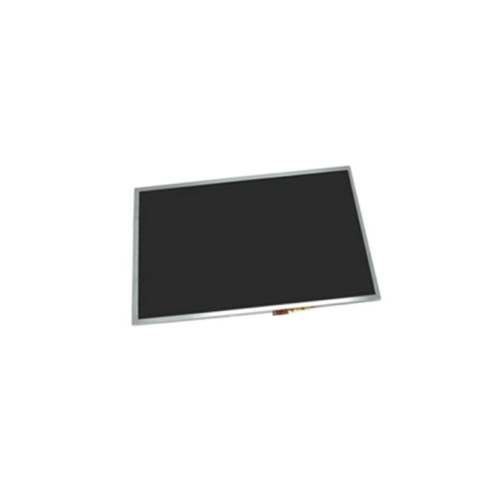

Product Picture:
