AM-800480L6TMQW-TN0H-I AMPIRE 5.0 inch TFT-LCD

$12.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AM-800480L6TMQW-TN0H-I is a 5.0" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480L6TMQW-TN0H-I supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 118.5(W)×77.1(H) mm, viewing area size of 110.6(W)×67.4(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480L6TMQW-TN0H-I can provides 640 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AM-800480L6TMQW-TN0H-I utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 44 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-800480L6TMQW-TN0H-I
Panel Brand	AMPIRE
Panel Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA, 188PPI
Pixel Format	RGB Vertical Stripe
Display Area	108(W)×64.8(H) mm
Bezel Opening	110.6(W)×67.4(H) mm
Outline Size	118.5(W)×77.1(H) mm
Brightness	640 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM)
Viewing Angle	70/70/70/50 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Display Colors	16.7M 52% NTSC
Lamp Type	WLED , 30K hours , Without Driver
Frequency	60Hz
Touch Screen	PCAP
Signal Interface	Parallel RGB (1 ch, 8-bit) , 44 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

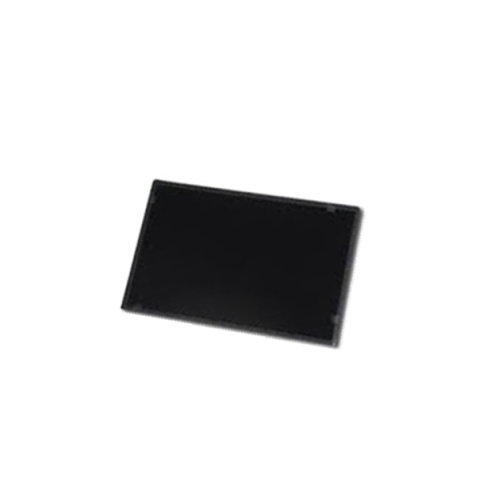

Product Picture:

AM-800480L6TMQW-TN0H-I
