AM-800480L1TMQW-TN0H AMPIRE 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480L1TMQW-TN0H is a 5.0" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480L1TMQW-TN0H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 118.5(W)×77.1(H)×6.66(D) mm, viewing area size of 110.6(W)×67.4(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, AM-800480L1TMQW-TN0H can provides 360 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800480L1TMQW-TN0H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model
AM-800480L1TMQW-TN0H
Brand
AMPIRE
Diagonal Size
5.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×480 [WVGA] 188PPI
Configuration
RGB Vertical Stripe
Active Area
108(H)×64.8(V) mm
Outline Dim.
118.5(H)×77.1(V) ×6.66(D) mm
Bezel Area
110.6(H)×67.4(V) mm
Treatment
Antiglare
Luminance
360 cd/m² (Typ.)
Contrast Ratio
250:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
15/35 (Typ.)(Tr/Td)
Viewing Angle
70/70/70/50 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
16.7M 52% NTSC
Light Source
WLED [3S6P] , W/O Driver
Frame Rate
60Hz
Touch Panel
PCAP
Interface Type
Parallel RGB (1 ch, 8-bit) , 45 pins FPC
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

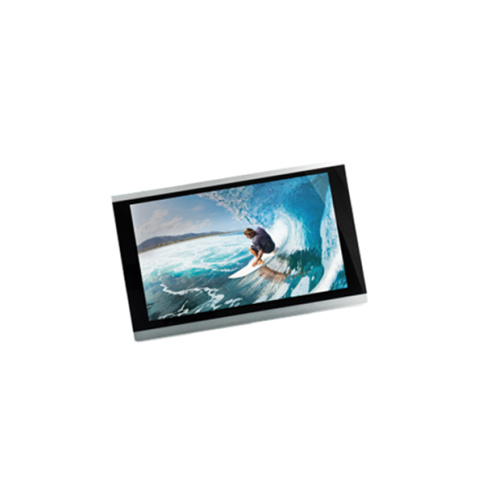

Product Picture:
