AM-800480LATMQW-TN0H AMPIRE 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480LATMQW-TN0H is a 5.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140409 which was released out on 4 9 2014, AM-800480LATMQW-TN0H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 118.5(W)×74(H)×5.16(D) mm. As a TN, Normally White, Transmissive LCM product, AM-800480LATMQW-TN0H can provides 360 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/35 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800480LATMQW-TN0H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480LATMQW-TN0H |
|
Brand |
AMPIRE |
|
Diagonal Size |
5.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 188PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
108(H)×64.8(V) mm |
|
Outline Dim. |
118.5(H)×74(V) ×5.16(D) mm |
|
Luminance |
360 cd/m² (Typ.) |
|
Contrast Ratio |
250:1 (Typ.) (TM) |
|
Response Time |
15/35 (Max.)(Tr/Td) |
|
Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M 52% NTSC |
|
Light Source |
WLED [3S6P] , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

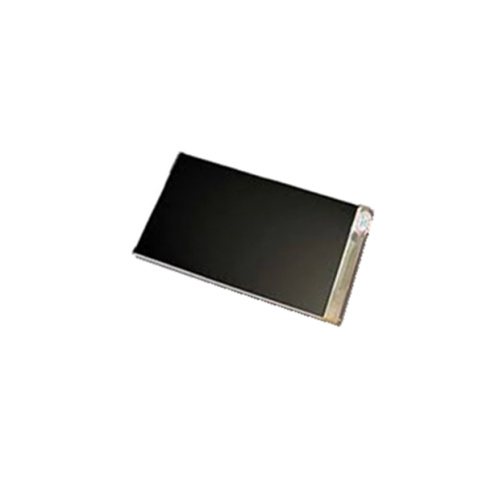

Product Picture:
