AM-800480LTMQW-00H AMPIRE 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480LTMQW-00H is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20090507 which was released out on 5 7 2009, AM-800480LTMQW-00H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 119(W)×77.1(H)×3.41(D) mm, viewing area size of 110.6(W)×67.4(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480LTMQW-00H can provides 300 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800480LTMQW-00H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-800480LTMQW-00H
Panel Brand	AMPIRE
Panel Size	5.0"
Resolution	800(RGB)×480, WVGA, 188PPI
Display Area	108(W)×64.8(H) mm
Outline Size	119(W)×77.1(H) ×3.41(D) mm
Brightness	300 cd/m² (Typ.)
Viewing Angle	70/70/70/50 (Typ.)(CR≥10)
Display Colors	16.7M 52% NTSC
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	110.6(W)×67.4(H) mm
Surface	Antiglare
Contrast Ratio	250:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	15/35 (Typ.)(Tr/Td)
Lamp Type	3S6P WLED , Without Driver
Touch Screen	Without
Signal Interface	Parallel RGB (1 ch, 8-bit) , 45 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -5 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

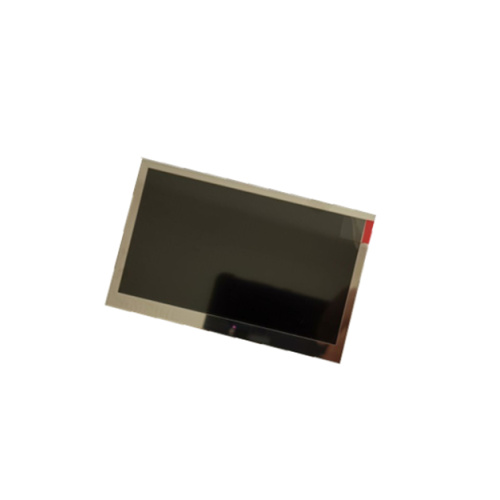

Product Picture:

AM-800480LTMQW-00H
