AM-800480LTMQW-00H-F AMPIRE 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480LTMQW-00H-F is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20120131 which was released out on 1 30 2012, AM-800480LTMQW-00H-F supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 119(W)×77.1(H)×3.41(D) mm, viewing area size of 110.6(W)×67.4(H) mm, with surface treament of Glare (Haze 0%), net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480LTMQW-00H-F can provides 450 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800480LTMQW-00H-F utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800480LTMQW-00H-F |
|
Manufacturer |
AMPIRE |
|
Screen Size |
5.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×480 (WVGA) 188PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
108 × 64.8 (H×V) |
|
Outline(mm) |
119 × 77.1 × 3.41 (H×V×D) |
|
Bezel Area(mm) |
110.6 × 67.4 (H×V) |
|
Treatment |
Glare (Haze 0%) |
|
Luminance |
450 cd/m² (Typ.) |
|
Contrast Ratio |
250 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
|
Response |
15/35 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M 52% NTSC |
|
Backlight |
3S6P WLED , No Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , FPC 45 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

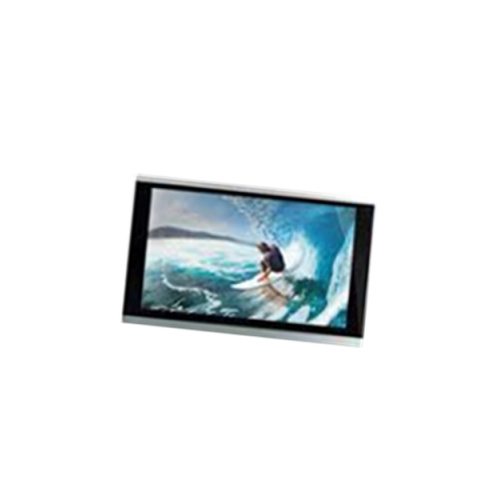

Product Picture:
