AM-800480BDTZQW-51H AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480BDTZQW-51H is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20190708 which was released out on 7 8 2019, AM-800480BDTZQW-51H supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.3(W)×67(H) mm, viewing area size of 97.9(W)×56.7(H) mm. As a Normally Black, Transmissive LCM product, AM-800480BDTZQW-51H can provides 1100 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-800480BDTZQW-51H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480BDTZQW-51H |
|
Brand |
AMPIRE |
|
Diagonal Size |
4.3 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 216PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
95.04(H)×53.856(V) mm |
|
Outline Dim. |
105.3(H)×67(V) mm |
|
Bezel Area |
97.9(H)×56.7(V) mm |
|
Luminance |
1100 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
40 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Operating Mode |
Normally Black, Transmissive |
|
Support Color |
16.2M |
|
Light Source |
WLED [6S3P] , 50K hours , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |

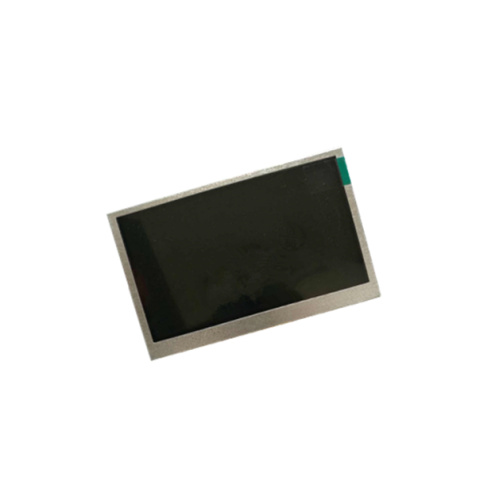

Product Picture:
