AM-320240LQTZQW-50H AMPIRE 3.5 inch TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-320240LQTZQW-50H is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20181224 which was released out on 12 24 2018, AM-320240LQTZQW-50H supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×3.45(D) mm, viewing area size of 72.88(W)×54.94(H) mm. As a Normally Black, Transmissive LCM product, AM-320240LQTZQW-50H can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 36K hours, external backlight driver is additionally needed. AM-320240LQTZQW-50H utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-320240LQTZQW-50H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
3.5" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240, QVGA, 115PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
70.08(W)×52.56(H) mm |
|
Bezel Opening |
72.88(W)×54.94(H) mm |
|
Outline Size |
76.9(W)×63.9(H) ×3.45(D) mm |
|
Brightness |
800 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
30 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 60% NTSC |
|
Lamp Type |
6S2P WLED , 36K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

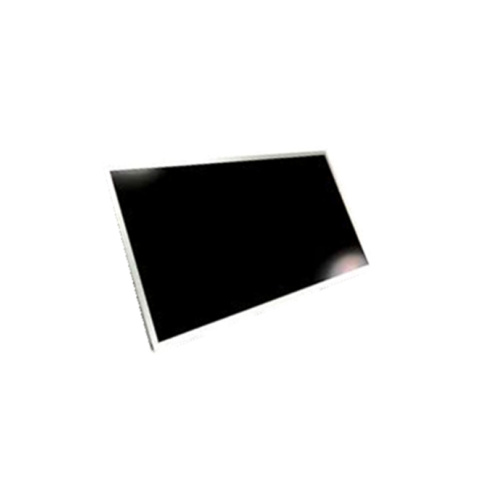

Product Picture:
