AM-320480B5TNQW-00H AMPIRE 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AM-320480B5TNQW-00H is a 3.5 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-320480B5TNQW-00H supports display 320(RGB)×480 (HVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 48.96(W)×73.44(H) mm, outline size of 58(W)×87(H)×3.1(D) mm. As a TN, Normally White, Transmissive LCM product, AM-320480B5TNQW-00H can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-320480B5TNQW-00H utilizes CPU/RGB/SPI as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 2.8/3.3V (Typ.)(VCI/IOVCC). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-320480B5TNQW-00H |
|
Brand |
AMPIRE |
|
Diagonal Size |
3.5 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
320(RGB)×480 [HVGA] 166PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
48.96(H)×73.44(V) mm |
|
Outline Dim. |
58(H)×87(V) ×3.1(D) mm |
|
Luminance |
450 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Response Time |
30 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 60% NTSC |
|
Light Source |
WLED , 20K hours , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
CPU/RGB/SPI , 40 pins FPC |
|
Power Supply |
2.8/3.3V (Typ.)(VCI/IOVCC) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

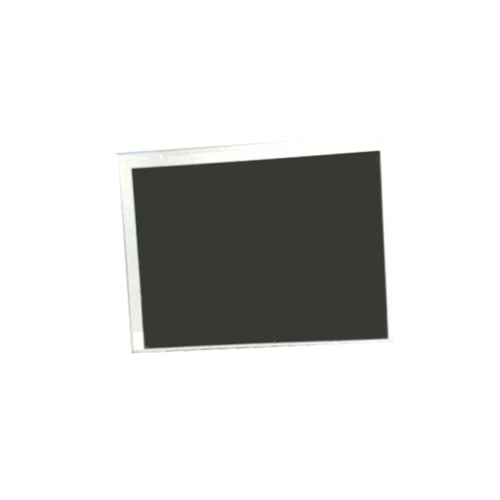

Product Picture:
