AM-480640BTGQW-00H AMPIRE 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-480640BTGQW-00H is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20160224 which was released out on 2 24 2016, AM-480640BTGQW-00H supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.568(W)×71.424(H) mm, outline size of 61.8(W)×88.5(H)×5.1(D) mm, viewing area size of 55.9(W)×73.8(H) mm, net weight of TBD. As a Normally Black, Transflective LCM product, AM-480640BTGQW-00H can provides 400 cd/m² display brightness 250:1 transimissive contrast ratio, 15:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 58% (NTSC). This product adopted 3S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-480640BTGQW-00H utilizes TTL (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 2.3/3.3V (Min./Max.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-480640BTGQW-00H |
|
Brand |
AMPIRE |
|
Diagonal Size |
3.5 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
480(RGB)×640 [VGA] 227PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
53.568(H)×71.424(V) mm |
|
Outline Dim. |
61.8(H)×88.5(V) ×5.1(D) mm |
|
Bezel Area |
55.9(H)×73.8(V) mm |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
250:1 (Typ.) (TM) 15:1 (Typ.) (RF) |
|
View Direction |
Symmetry |
|
Response Time |
30 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Operating Mode |
Normally Black, Transflective |
|
Support Color |
262K 58% NTSC |
|
Light Source |
WLED [3S3P] , 50K hours , W/O Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
TTL (1 ch, 6-bit) + SPI , 40 pins FPC |
|
Power Supply |
2.3/3.3V (Min./Max.) |
|
Environment |
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 80 °C |

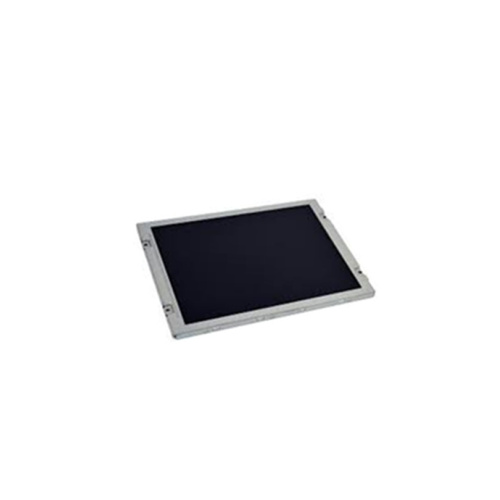

Product Picture:
