AM320240L8TNQW-TC0H AMPIRE 3.5 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM320240L8TNQW-TC0H is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20090728 which was released out on 7 28 2009, AM320240L8TNQW-TC0H supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 77.8(W)×64.5(H)×7.25(D) mm, viewing area size of 73.7(W)×55.3(H) mm, net weight of 53.0g. As a TN, Normally White, Transmissive LCM product, AM320240L8TNQW-TC0H can provides 400 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/55/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 50 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K/262K colors, also with performance of color gamut 57% (NTSC). This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM320240L8TNQW-TC0H utilizes CPU as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	AM320240L8TNQW-TC0H
Manufacturer	AMPIRE
Screen Size	3.5 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	320(RGB)×240 (QVGA) 115PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	70.08 × 52.56 (H×V)
Outline(mm)	77.8 × 64.5 × 7.25 (H×V×D)
Bezel Area(mm)	73.7 × 55.3 (H×V)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	300 : 1 (Typ.) (TM)
Viewing Angle	70/70/55/35 (Typ.)(CR≥10)
Response	50 (Typ.)(Tr+Td) ms
Work Mode	TN, Normally White, Transmissive
Color Depth	65K/262K 57% NTSC
Backlight	3S2P WLED , No Driver
Mass	53.0g
Refresh Rate	60Hz
Touchscreen	4-wire Resistive Touch
Signal Type	CPU , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

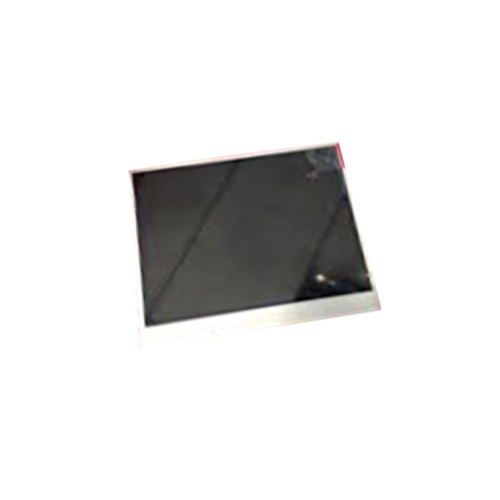

Product Picture:

AM320240L8TNQW-TC0H
