AM-320240LATNQW-00H-F AMPIRE 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-320240LATNQW-00H-F is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, without touch screen. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20120412 which was released out on 4 12 2012, AM-320240LATNQW-00H-F supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 77.8(W)×64.5(H)×4.7(D) mm, viewing area size of 73.7(W)×55.3(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, AM-320240LATNQW-00H-F can provides 500 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AM-320240LATNQW-00H-F utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-320240LATNQW-00H-F |
|
Panel Brand |
AMPIRE |
|
Panel Size |
3.5" |
|
Resolution |
320(RGB)×240, QVGA, 115PPI |
|
Display Area |
70.08(W)×52.56(H) mm |
|
Outline Size |
77.8(W)×64.5(H) ×4.7(D) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
262K |
|
Frequency |
60Hz |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
73.7(W)×55.3(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
300:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Lamp Type |
3S2P WLED , 30K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 40 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

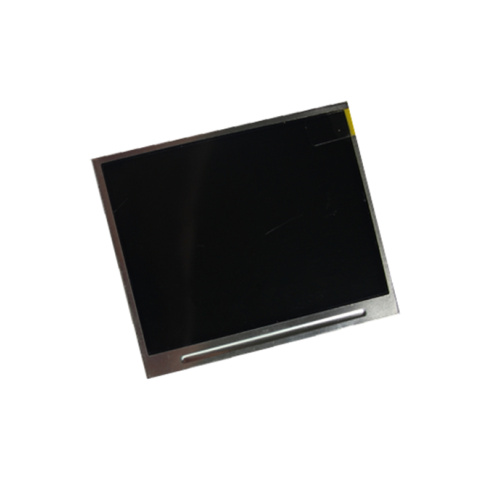

Product Picture:
