AM-320240L6TMQW-TB0H-A AMPIRE 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-320240L6TMQW-TB0H-A is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20111025 which was released out on 10 25 2011, AM-320240L6TMQW-TB0H-A supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 77.8(W)×64.5(H)×4.6(D) mm, with surface treament of Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-320240L6TMQW-TB0H-A can provides 235 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/15/35 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-320240L6TMQW-TB0H-A utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-320240L6TMQW-TB0H-A |
|
Panel Brand |
AMPIRE |
|
Panel Size |
3.5" |
|
Resolution |
320(RGB)×240, QVGA, 115PPI |
|
Display Area |
70.08(W)×52.56(H) mm |
|
Outline Size |
77.8(W)×64.5(H) ×4.6(D) mm |
|
Brightness |
235 cd/m² (Typ.) |
|
Viewing Angle |
45/45/15/35 (Min.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
16.7M |
|
Frequency |
60Hz |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Surface |
Hard coating (3H) |
|
Contrast Ratio |
300:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Lamp Type |
3S2P WLED , Without Driver |
|
Touch Screen |
4-wire Resistive Touch |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) + SPI , 60 pins |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

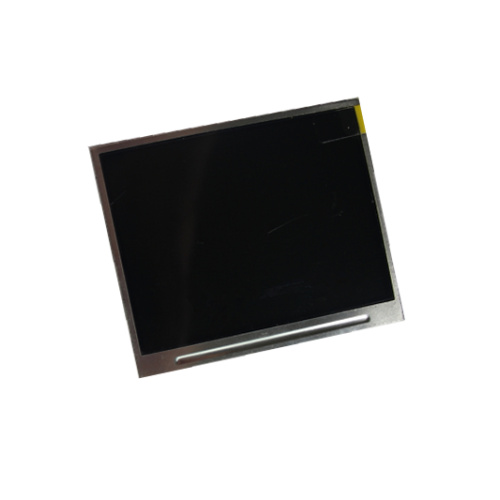

Product Picture:
