Ampire 5.7 inch 640×480 TFT-LCD Panel AM-640480G4TNQW-A0H

Ampire Co., Ltd. (hereafter called AMPIRE) AM-640480G4TNQW-A0H is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AMPIRE TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of 20120326 which was released out on 3 26 2012, AM-640480G4TNQW-A0H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×7.5(D) mm, viewing area size of 118.02(W)×89.2(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480G4TNQW-A0H can provides 500 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-640480G4TNQW-A0H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz

We are able to offer AD board for this display to support VGA video input.

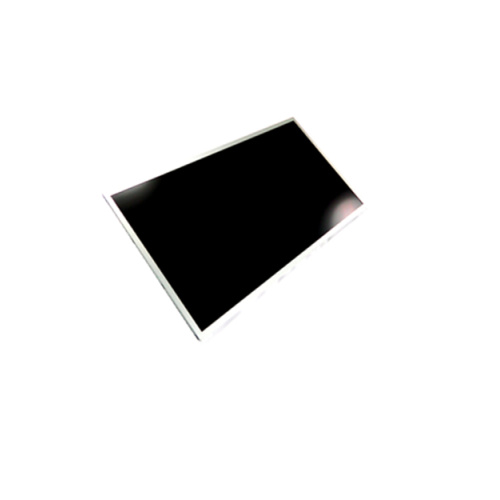

Product Picture:
