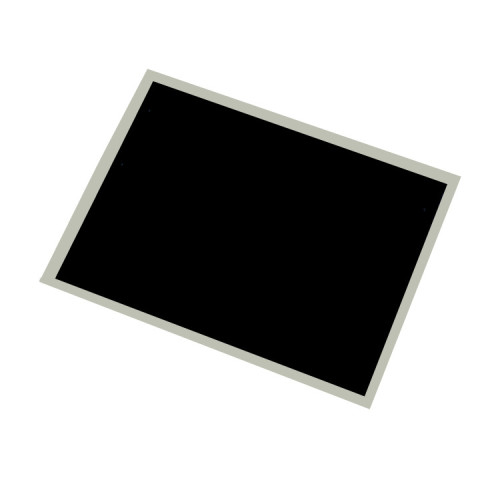

G070VTT01.0 7.0 Inch AUO TFT-LCD

G070VTT01.0 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch. This AUO TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G070VTT01.0 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×105.8(H)×4.81(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 159±15g. As a TN, Normally White, Transmissive LCM product, G070VTT01.0 can provides 380 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. G070VTT01.0 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.
