G320ZAN02.2 32.0 Inch AUO TFT-LCD

AU Optronics Corp. (hereafter called AUO) G320ZAN02.2 is a 32.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 32.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G320ZAN02.2 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 708.48(W)×398.52(H) mm, outline size of 727.3(W)×424.5(H)×20.98(D) mm, viewing area size of 714.48(W)×404.52(H) mm, with surface treament of Antiglare, net weight of 4.63Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G320ZAN02.2 can provides 850 cd/m² display brightness 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 22 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G320ZAN02.2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

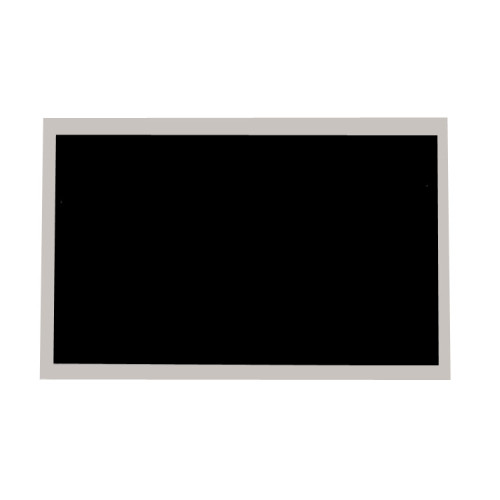

Product Picture:
