G270ZAN01.7 27.0 Inch AUO TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE,ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
AU Optronics Corp. (hereafter called AUO) G270ZAN01.7 is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This AUO TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G270ZAN01.7 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.16(W)×335.14(H) mm. As a AHVA, Normally Black, Transmissive LCM product, G270ZAN01.7 can provides 500 cd/m² display brightness 1450:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. G270ZAN01.7 utilizes eDP as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G270ZAN01.7 |
|
Brand |
AUO |
|
Diagonal Size |
27.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
3840(RGB)×2160, UHD 163PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
596.16(W)×335.14(H) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1450:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
AHVA, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
16 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 98% DCI-P3 |
|
Lamp Type |
WLED , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
eDP |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

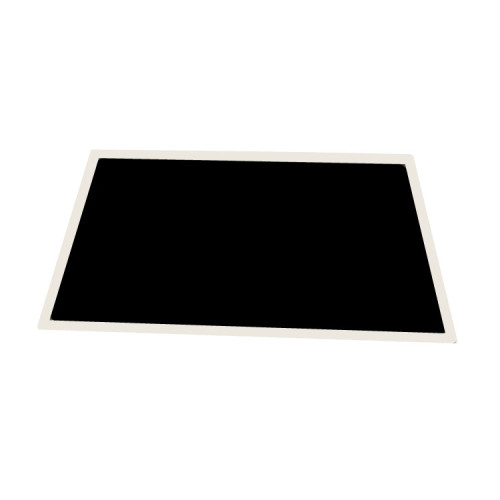

Product Picture:
