G270QAN01.3 27.0 Inch AUO TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This AUO TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G270QAN01.3 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.74(W)×335.66(H) mm, with surface treament of Antiglare. As a AHVA, Normally Black, Transmissive LCM product, G270QAN01.3 can provides 400 cd/m² display brightness 1600:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. G270QAN01.3 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G270QAN01.3 |
|
Brand |
AUO |
|
Diagonal Size |
27.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
2560(RGB)×1440, Quad-HD 108PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
596.74(W)×335.66(H) mm |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
1600:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
AHVA, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
8/8 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 98% DCI-P3 |
|
Lamp Type |
WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (4 ch, 8-bit) , 92 pins Connector |
|
Input Voltage |
5.0V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

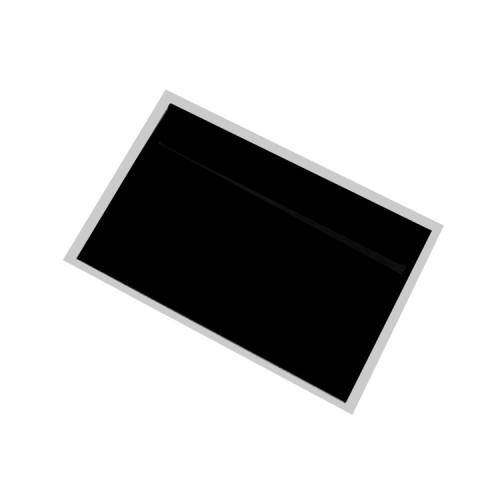

Product Picture:
