G156XTN02.1 AUO 15.6 inch TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G156XTN02.1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 359.5(W)×223.8(H)×3.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 380g (Max.). As a TN, Normally White, Transmissive LCM product, G156XTN02.1 can provides 250 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/55/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. G156XTN02.1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G156XTN02.1 |
|
Brand |
AUO |
|
Diagonal Size |
15.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1366(RGB)×768, WXGA 100PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
344.232(W)×193.536(H) mm |
|
Outline (mm) |
359.5×223.8×3.3 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
250 cd/m² (Typ.) |
|
Contrast Ratio |
600 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/55/70 (Typ.)(CR≥10) |
|
Response |
8 (Typ.)(Tr+Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 45% NTSC |
|
Backlight |
WLED , 15K hours , With LED Driver |
|
Mass |
380g (Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
eDP (1 Lane) , eDP1.2 , Connector 30 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

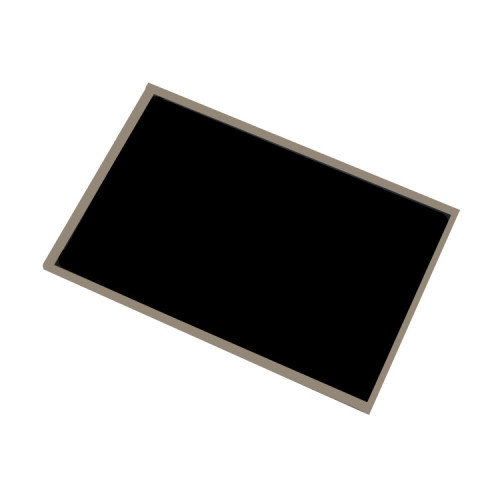

Product Picture:
