A036FAB01.0 AUO 3.6 inch TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Air,Land,Express |
| Port: | Shenzhen |
AU Optronics Corp. (hereafter called AUO) A036FAB01.0 is a 3.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen On-Cell Touch. This AUO TFT-LCD is a 3.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. A036FAB01.0 supports display 480(RGB)×480 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 64.944(W)×64.944(H) mm, outline size of 79.9(W)×79.9(H)×1.2(D) mm, with surface treament of Anti Fingerprint, net weight of 32.6g (Typ.). As a AHVA, Normally Black, Transmissive LCM product, A036FAB01.0 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. A036FAB01.0 utilizes MIPI (1 data lane) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VDD). It's typical vertical frame rate (Fv) is 75Hz.
We are able to offer AD board for this display to support VGA video input.
| Model P/N | A036FAB01.0 |
| Brand | AUO |
| Diagonal Size | 3.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×480 187PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.944(W)×64.944(H) mm |
| Outline Size | 79.9(W)×79.9(H) ×1.2(D) mm |
| Surface | Anti Fingerprint |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Max.)(Tr+Tf) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | 5S2P WLED , 20K hours , Without Driver |
| Frequency | 75Hz |
| Touch Screen | On-Cell Touch, I²C |
| Panel Weight | 32.6g (Typ.) |
| Signal Interface | MIPI (1 data lane) , 24 pins Connector |
| Input Voltage | 1.8/3.3V (Typ.)(VDDIO/VDD) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

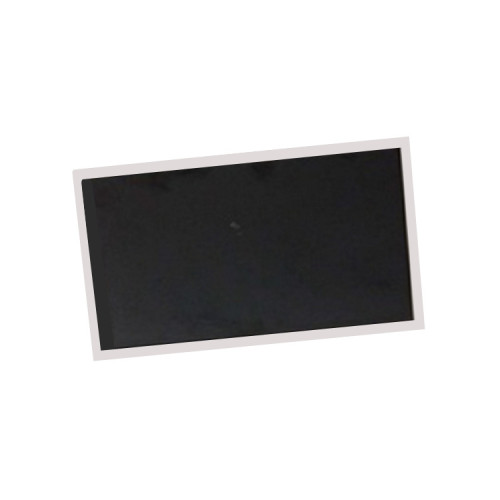

Product Picture:
