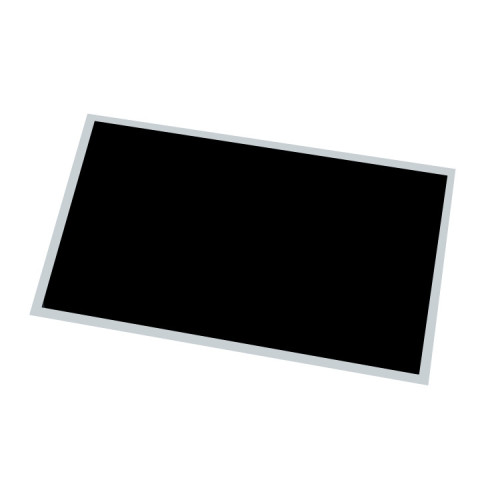

G240UAN01.3 24.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 24.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G240UAN01.3 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, with surface treament of Antiglare. As a AHVA, Normally Black, Transmissive LCM product, G240UAN01.3 can provides 410 cd/m² display brightness 1350:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. G240UAN01.3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G240UAN01.3
Panel Brand	AUO
Panel Size	24.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA, 94PPI
Pixel Format	RGB Vertical Stripe
Display Area	518.4(W)×324(H) mm
Brightness	410 cd/m² (Typ.)
Contrast Ratio	1350:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(Tr+Td)
Display Colors	16.7M 98% DCI-P3
Lamp Type	WLED , 30K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit) , 51 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
