G240HW01 V1 24.0 inch AUO TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | HK,Shenzhen |
This AUO TFT-LCD is a 24.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G240HW01 V1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 531.36(W)×298.89(H) mm, outline size of 556(W)×323.2(H)×17(D) mm, viewing area size of 535.36(W)×302.89(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.30±0.2Kgs. As a AMVA3, Normally Black, Transmissive LCM product, G240HW01 V1 can provides 300 cd/m² display brightness 5000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S7P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G240HW01 V1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
| Model Name | G240HW01 V1 |
| Manufacturer | AUO |
| Screen Size | 24.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 91PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 531.36 × 298.89 (H×V) |
| Outline(mm) | 556 × 323.2 × 17 (H×V×D) |
| Bezel Area(mm) | 535.36 × 302.89 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 5000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 16/9 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S7P WLED , 50K hours , With LED Driver |
| Mass | 2.30±0.2Kgs |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

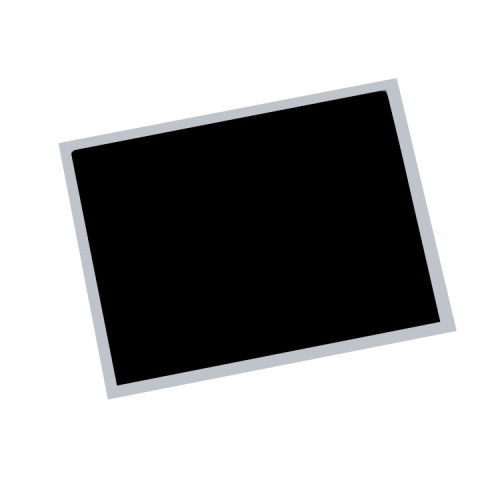

Product Picture:
