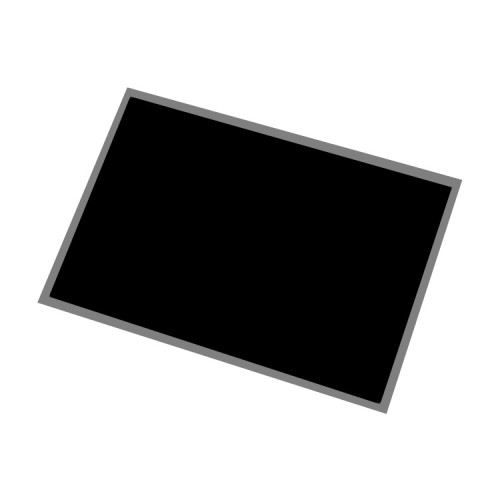

G215HAN01.0 21.5 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

G215HAN01.0 (Alias: 97.21G03.000) is a 21.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. AUO TFT-LCD is a 21.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G215HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 497.6(W)×292.2(H)×18.2(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.10Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G215HAN01.0 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 9S7P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G215HAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G215HAN01.0
Panel Brand	AUO
Panel Size	21.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 102PPI
Pixel Format	RGB Vertical Stripe
Display Area	476.064(W)×267.786(H) mm
Bezel Opening	479.8(W)×271.3(H) mm
Outline Size	497.6(W)×292.2(H) ×18.2(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	12/10 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	9S7P WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.10Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
