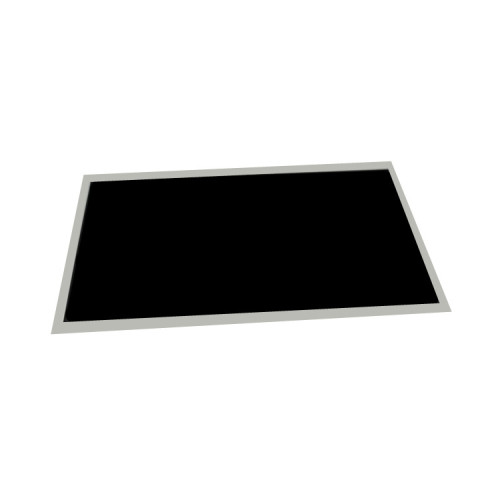

G185XTN01.1 18.5inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 18.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G185XTN01.1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.7(H)×11.1(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.44Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G185XTN01.1 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G185XTN01.1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G185XTN01.1
Panel Brand	AUO
Panel Size	18.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA, 84PPI
Pixel Format	RGB Vertical Stripe
Display Area	409.8(W)×230.4(H) mm
Bezel Opening	413.4(W)×234.0(H) mm
Outline Size	430.4(W)×254.7(H) ×11.1(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	8 (Typ.)(Tr+Td)
Display Colors	16.7M 72% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.44Kgs (Max.)
Signal Interface	eDP (1 Lane) , eDP1.2 , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
