G173HW01 V0 17.3 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

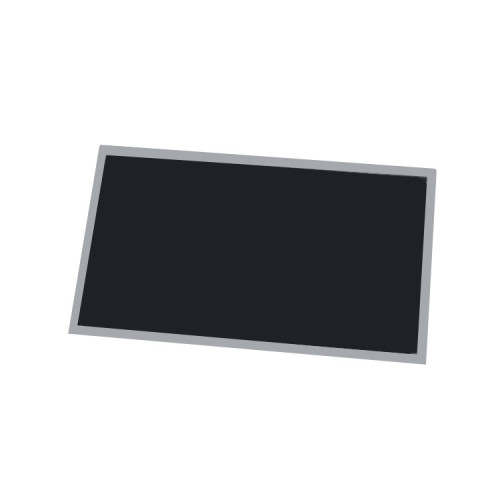

AU Optronics Corp. (hereafter called AUO) G173HW01 V0 (Alias: G173HW01 V.0) is a 17.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G173HW01 V0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 403(W)×240(H)×13(D) mm, viewing area size of 385.09(W)×218.01(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 1.08Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G173HW01 V0 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 37/3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G173HW01 V0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G173HW01 V0
Panel Brand	AUO
Panel Size	17.3"
Resolution	1920(RGB)×1080, FHD, 127PPI
Display Area	381.888(W)×214.812(H) mm
Outline Size	403(W)×240(H) ×13(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Best View on	-
Display Colors	16.7M 72% NTSC
Frequency	60Hz
Weight	1.08Kgs (Typ.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	385.09(W)×218.01(H) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	37/3 (Typ.)(Tr/Td)
Lamp Type	WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 75 °C
