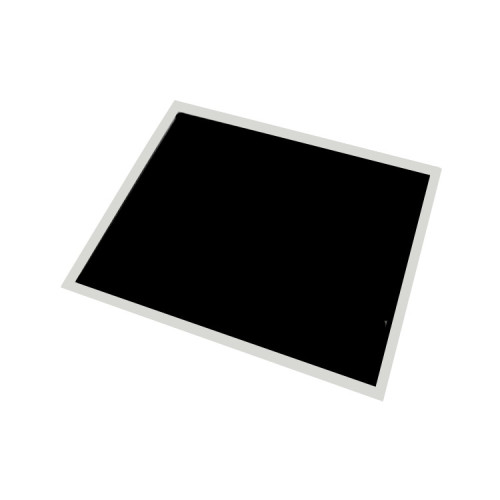

G170ETN02.1 17.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

G170ETN02.1 is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, without touch screen. This AUO TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen,G170ETN02.1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H) mm, viewing area size of 341.6(W)×274.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.59Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G170ETN02.1 can provides 800 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. G170ETN02.1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G170ETN02.1
Panel Brand	AUO
Panel Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA, 96PPI
Pixel Format	RGB Vertical Stripe
Display Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline Size	358.5(W)×296.5(H) mm
Surface	Antiglare, Hard coating (3H)
Brightness	800 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	15/5 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	10S4P WLED , 50K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.59Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
