G170EG01 V1 17.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

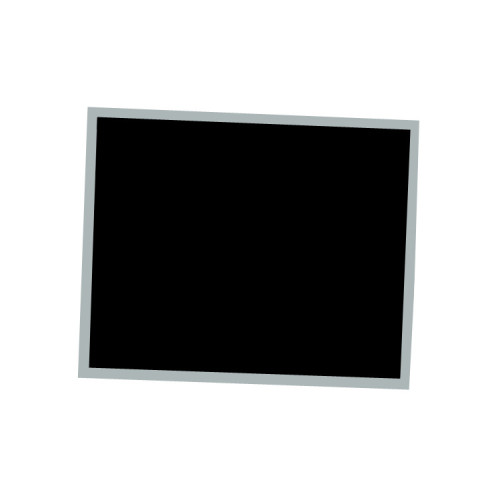

G170EG01 V1 (Alias: G170EG01 V.1) is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G170EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H)×18(D) mm, viewing area size of 341.6(W)×274.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.35Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G170EG01 V1 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G170EG01 V1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	G170EG01 V1
Brand	AUO
Diagonal Size	17.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1280(RGB)×1024 [SXGA] 96PPI
Configuration	RGB Vertical Stripe
Active Area	337.92(H)×270.336(V) mm
Outline Dim.	358.5(H)×296.5(V) ×18(D) mm
Bezel Area	341.6(H)×274.0(V) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	20/10 (Typ.)(Tr/Td)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72% NTSC
Light Source	WLED , 50K hours , With LED Driver
Weight	1.35Kgs (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
