G156HAN02.3 15.6 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

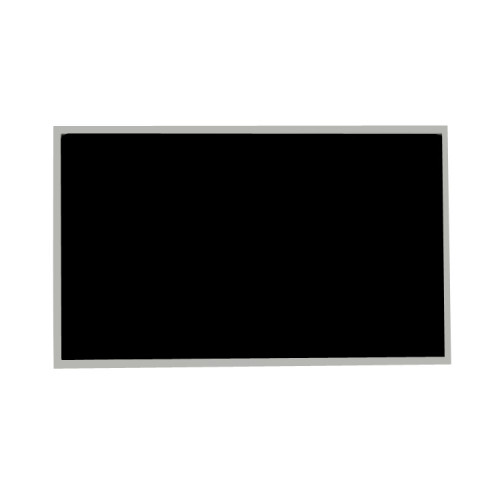

G156HAN02.3 (Alias: 97.15G25.300) is a 15.6 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G156HAN02.3 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×215.9(H)×9.3(D) mm, viewing area size of 347.06(W)×196.49(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600/660g (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, G156HAN02.3 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HAN02.3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	G156HAN02.3
Brand	AUO
Diagonal Size	15.6 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1920(RGB)×1080 [FHD] 141PPI
Configuration	RGB Vertical Stripe
Active Area	344.16(H)×193.59(V) mm
Outline Dim.	363.8(H)×215.9(V) ×9.3(D) mm
Bezel Area	347.06(H)×196.49(V) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M 99% sRGB
Light Source	WLED , 50K hours , With LED Driver
Weight	600/660g (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -10 ~ 65 °C
