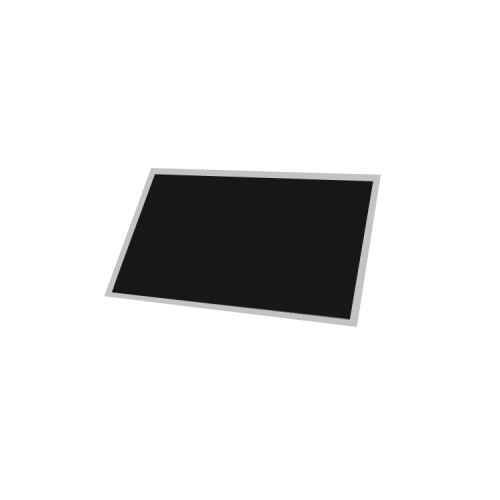

G156XTN01.2 15.6 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

G156XTN01.2 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen,G156XTN01.2 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×9.57(D) mm, viewing area size of 347.06(W)×196.49(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 860g (Typ.). As a TN, Normally White, Transmissive LCM product, G156XTN01.2 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 62% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156XTN01.2 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	G156XTN01.2
Manufacturer	AUO
Screen Size	15.6 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	1366(RGB)×768 (WXGA) 100PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	344.232 × 193.536 (H×V)
Outline(mm)	363.8 × 215.9 × 9.57 (H×V×D)
Bezel Area(mm)	347.06 × 196.49 (H×V)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/70/80 (Typ.)(CR≥10)
Response	10 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 62% NTSC
Backlight	WLED , 50K hours , With LED Driver
Mass	860g (Typ.)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (1 Lane) , eDP1.2 , Connector 30 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
