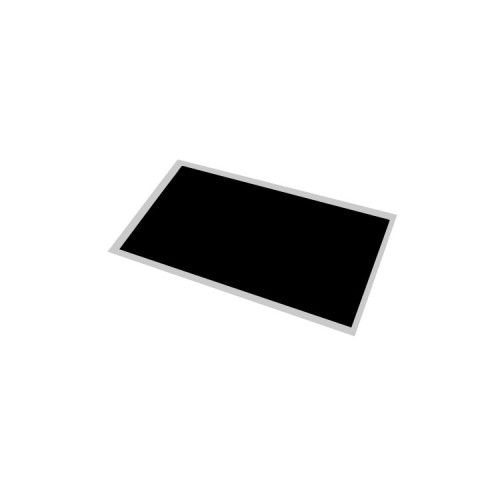

G156XW01 V302 15.6 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G156XW01 V302 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×9.8(D) mm, viewing area size of 347.54(W)×196.83(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 860±40g. As a TN, Normally White, Transmissive LCM product, G156XW01 V302 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 6/2 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 65% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G156XW01 V302 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	G156XW01 V302
Manufacturer	AUO
Screen Size	15.6 inch
Pixel Number	1366(RGB)×768 (WXGA) 100PPI
Active Area(mm)	344.232 × 193.536 (H×V)
Bezel Area(mm)	347.54 × 196.83 (H×V)
Luminance	500 (Typ.)(cd/m²)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Color Depth	16.2M 65% NTSC
Mass	860±40g
Refresh Rate	60Hz
Screen Type	LCM , a-Si TFT-LCD
Arrangement	RGB Vertical Stripe
Outline(mm)	363.8 × 215.9 × 9.8 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	500 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	6/2 (Typ.)(Tr/Td) ms
Backlight	WLED , 50K hours , With LED Driver
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C
