G150XTN06.2 15.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

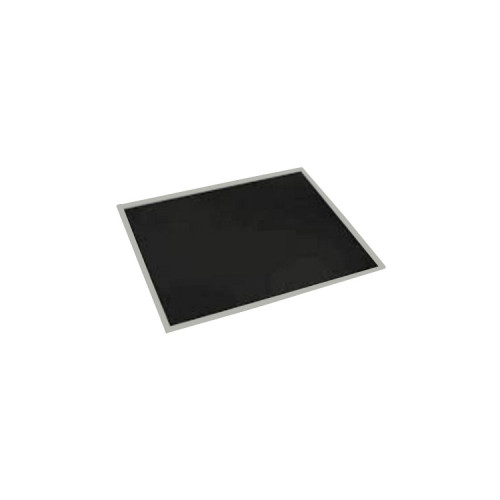

AU Optronics Corp. (hereafter called AUO) G150XTN06.2 (Alias: G150XTN06 V2) is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G150XTN06.2 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, net weight of 1.25Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G150XTN06.2 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 63% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G150XTN06.2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	G150XTN06.2
Brand	AUO
Diagonal Size	15.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)×768 [XGA] 85PPI
Configuration	RGB Vertical Stripe
Active Area	304.128(H)×228.096(V) mm
Outline Dim.	326.5(H)×253.5(V) ×12(D) mm
Bezel Area	307.4(H)×231.3(V) mm
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Response Time	5.7/2.3 (Typ.)(Tr/Td)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 63% NTSC
Light Source	WLED , 50K hours , With LED Driver
Weight	1.25Kgs (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
