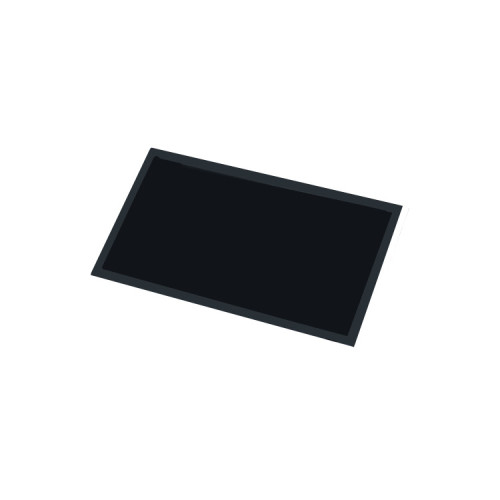

B140HTN01.2 14.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 14.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, B140HTN01.2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.14(W)×173.89(H) mm, outline size of 320.4(W)×205.1(H)×3(D) mm, with surface treament of Antiglare (Haze 20%), Hard coating (3H), net weight of 270g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, B140HTN01.2 can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B140HTN01.2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	B140HTN01.2 (AUO123D)
Manufacturer	AUO
Screen Size	14.0 inch
Pixel Number	1920(RGB)×1080 (FHD) 157PPI
Active Area(mm)	309.14 × 173.89 (H×V)
Luminance	300 (Typ.)(cd/m²)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Good View at	6 o'clock
Color Depth	262K 60% NTSC
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Refresh Rate	60Hz
Screen Type	LCM , a-Si TFT-LCD
Arrangement	RGB Vertical Stripe
Outline(mm)	320.4 × 205.1 × 3 (H×V×D)
Treatment	Antiglare (Haze 20%), Hard coating (3H)
Contrast Ratio	400 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	8 (Typ.)(Tr+Td) ms
Backlight	WLED , 15K hours , With LED Driver
Touchscreen	Without
Signal Type	eDP (2 Lanes) , 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
