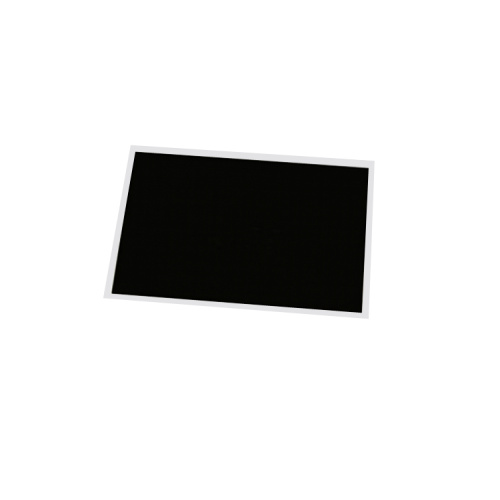

G050VTN01.0 5.0 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G050VTN01.0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 120.7(W)×76.3(H)×3.3(D) mm, viewing area size of 111.25(W)×68.7(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 58.0±2.0g. As a TN, Normally White, Transmissive LCM product, G050VTN01.0 can provides 370 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. G050VTN01.0 utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	G050VTN01.0
Manufacturer	AUO
Screen Size	5.0 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	800(RGB)×480 (WVGA) 188PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	108 × 64.8 (H×V)
Outline(mm)	120.7 × 76.3 × 3.3 (H×V×D)
Bezel Area(mm)	111.25 × 68.7 (H×V)
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	370 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	75/75/65/75 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Work Mode	TN, Normally White, Transmissive
Color Depth	16.2M 50% NTSC
Backlight	3S3P WLED , 20K hours , No Driver
Mass	58.0±2.0g
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TTL (1 ch, 8-bit) , FPC 40 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
