G156HAB01.0 AUO 15.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G156HAB01.0 is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen On-Cell Touch. AUO TFT-LCD is a 15.6 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. G156HAB01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 361(W)×227(H)×4.9(D) mm, with surface treament of Hard coating (7H), net weight of 620g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G156HAB01.0 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G156HAB01.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model
G156HAB01.0
Brand
AUO
Diagonal Size
15.6 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 [FHD]
Configuration
RGB Vertical Stripe
Active Area
344.16(H)×193.59(V) mm
Outline Dim.
361(H)×227(V) ×4.9(D) mm
Treatment
Hard coating (7H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Support Color
16.2M 45% NTSC
Light Source
WLED , 30K hours , With LED Driver
Weight
620g (Max.)
Frame Rate
60Hz
Touch Panel
On-Cell Touch
Interface Type
eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

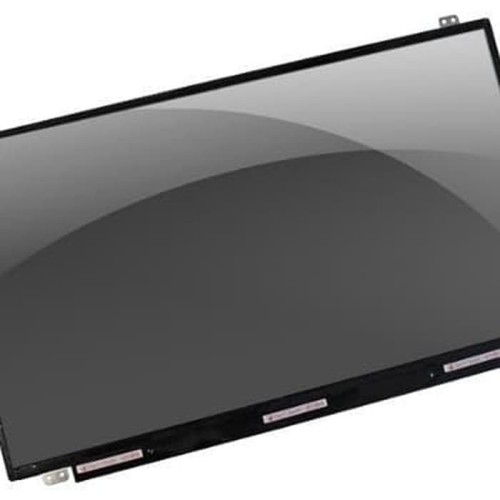

Product Picture:
