G156HAT01.0 (AUO30ED) AUO 15.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G156HAT01.0 (Product Code: AUO30ED) is a 15.6 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, touchscreen PCAP. AUO TFT-LCD is a 15.6 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.0 which was released out on 9 13 2018, G156HAT01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 370.4(W)×227.89(H) mm, viewing area size of 345.56(W)×194.99(H) mm, with surface treament of Hard coating (7H), net weight of 1.14Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G156HAT01.0 can provides 425 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HAT01.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model
G156HAT01.0 (AUO30ED)
Panel Brand
AUO
Panel Size
15.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080 , FHD
Pixel Format
RGB Vertical Stripe
Display Area
344.16(W)×193.59(H) mm
Bezel Opening
345.56(W)×194.99(H) mm
Outline Size
370.4(W)×227.89(H) mm
Surface
Hard coating (7H)
Brightness
425 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response Time
25 (Typ.)(Tr+Td)
Display Colors
16.2M 99% sRGB
Lamp Type
WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
PCAP
Panel Weight
1.14Kgs (Typ.)
Signal Interface
eDP (2 Lanes) , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -10 ~ 60 °C

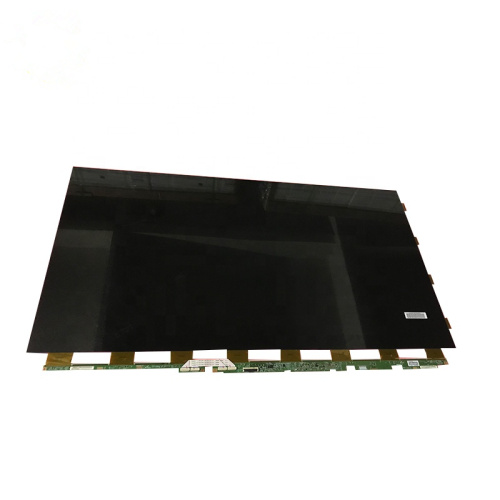

Product Picture:
roduct
