G230HAN01.1 AUO 23.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G230HAN01.1 is a 23.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, without touch screen. AUO TFT-LCD is a 23.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. G230HAN01.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 509.184(W)×286.416(H) mm, outline size of 533.2(W)×312(H)×11(D) mm, viewing area size of 513.784(W)×291.016(H) mm, with surface treament of Antiglare, net weight of 1.50±0.15Kgs. As a AHVA, Normally Black, Transmissive LCM product, G230HAN01.1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 18S4P WLED as it's backlight systerm and have a working life time of 30K hours, external backlight driver is additionally needed. G230HAN01.1 utilizes LVDS (2ch,8-bit) as it's signal inputting systerm, which connected by 30pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name
G230HAN01.1
Manufacturer
AUO
Screen Size
23.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD)
Arrangement
RGB Vertical Stripe
Active Area(mm)
509.184 × 286.416 (H×V)
Outline(mm)
533.2 × 312 × 11 (H×V×D)
Bezel Area(mm)
513.784 × 291.016 (H×V)
Treatment
Antiglare
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
AHVA, Normally Black, Transmissive
Color Depth
16.7M 72% NTSC
Backlight
18S4P WLED , 30K hours , No Driver
Mass
1.50±0.15Kgs
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

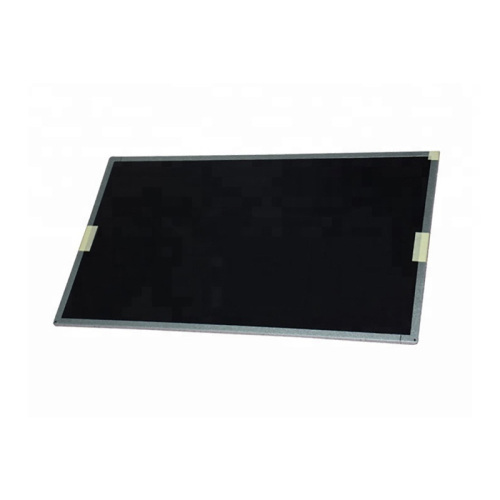

Product Picture:
