G170HAN01.0 AUO 17.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AU Optronics Corp. (hereafter called AUO) G170HAN01.0 is a 17.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. AUO TFT-LCD is a 17.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.1 which was released out on 5 10 2018, G170HAN01.0 supports display 1920(RGB)×1920 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 305.28(W)×305.28(H) mm, outline size of 325.01(W)×319.33(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 1.20Kgs (Max.). As a AHVA, Normally Black, Transmissive LCM product, G170HAN01.0 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G170HAN01.0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
G170HAN01.0 |
|
Manufacturer |
AUO |
|
Screen Size |
17.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1920(RGB)×1920 |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
305.28 × 305.28 (H×V) |
|
Outline(mm) |
325.01 × 319.33 (H×V×D) |
|
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
AHVA, Normally Black, Transmissive |
|
Color Depth |
16.7M 72% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
1.20Kgs (Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
eDP (4 Lanes) , 40 pins Connector |
|
Voltage Supply |
12.0V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 60 °C |

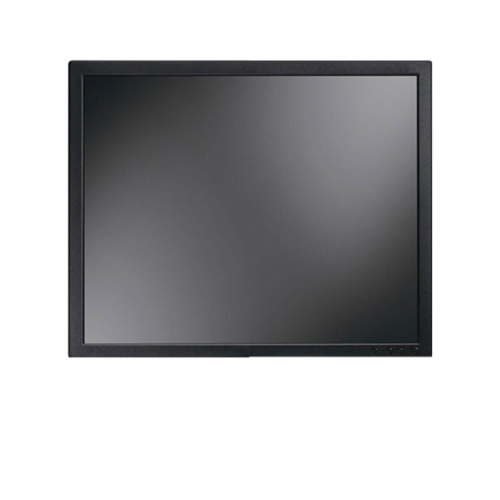

Product Picture:
