G170ETN02.0 AUO 17.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G170ETN02.0 is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.3 which was released out on 2 5 2018, G170ETN02.0 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H) mm, viewing area size of 341.6(W)×274.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.59Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G170ETN02.0 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G170ETN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
G170ETN02.0 |
|
Manufacturer |
AUO |
|
Screen Size |
17.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×1024 (SXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
337.92 × 270.336 (H×V) |
|
Outline(mm) |
358.5 × 296.5 (H×V×D) |
|
Bezel Area(mm) |
341.6 × 274.0 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) |
|
Response |
15/5 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M 90% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
1.59Kgs (Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Voltage Supply |
5.0V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |

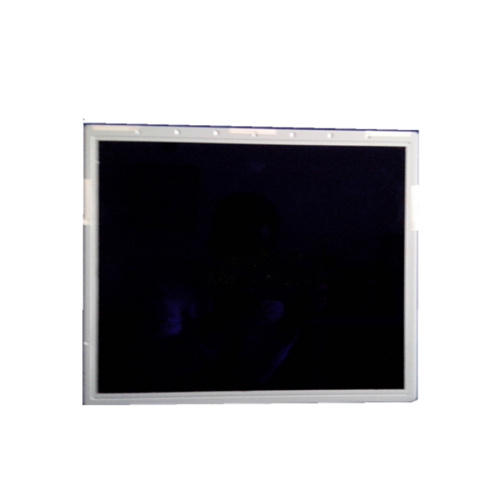

Product Picture:
