AUO 12.1 inch TFT-LCD G121STN01.0

AU Optronics Corp. (hereafter called AUO) G121STN01.0 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.23 which was released out on 11 21 2012, G121STN01.0 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×9.5(D) mm, viewing area size of 249.05(W)×188.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 580g (Max.). As a TN, Normally White, Transmissive LCM product, G121STN01.0 can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, With LED Driver. G121STN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

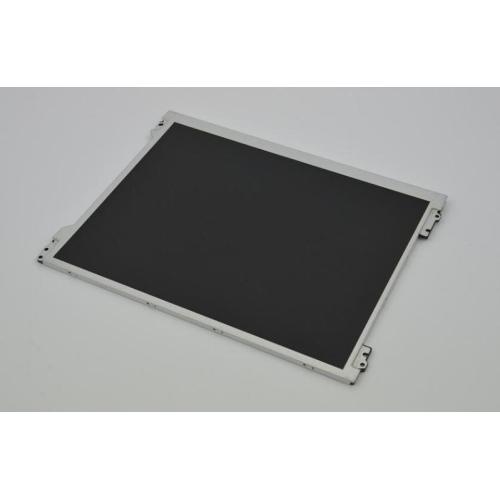

Product Picture

Application
