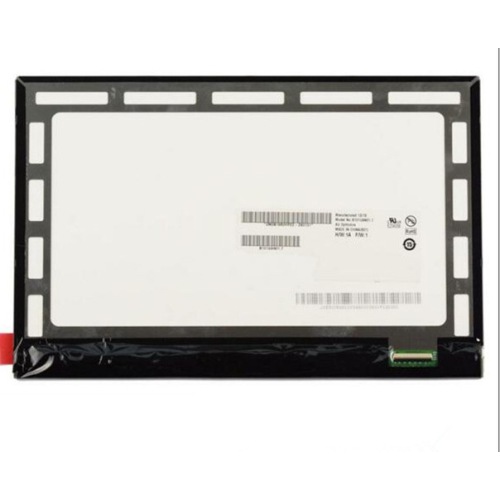

AUO 10.1 inch TFT-LCD B101UAN01.7

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

B101UAN01.7 is a 10.1 inch diagonal a-Si TFT-LCD display screen, This AUO TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. with resolution of 1920(RGB)×1200 (WUXGA), with a built-in WLED backlight,with LED driver,without touch screen. As a TN, Normally White, Transmissive LCM product,B101UAN01.7 can provides 380 cd/m² brightness, 500:1 contrast ratio, 85/85/85/85(Typ.)(CR≥10) (L/R/U/D) viewing angle,B101UAN01.7 utilizes Mipi,as it's signal inputting system.

We are able to offer AD board for this display to support VGA video input.

Model	B101UAN01.7
Brand	AUO
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1920(RGB)×1200 [WUXGA]
Configuration	RGB Vertical Stripe
Active Area	216.81(H)×135.5(V) mm
Outline Dim.	227.72(H)×147.8(V) ×5.35(D) mm
Treatment	Glare (Haze 0%)
Luminance	380 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M 50% (CIE1931)
Light Source	WLED , 12K hours , With LED Driver
Weight	140g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	34 pins MIPI (4 data lanes) , Connector
Power Supply	3.7V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
