AUO 9 inch TFT-LCD G090VTN02.0

G090VTN02.0 is a 9.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. This AUO TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.3 which was released out on 1 8 2013, G090VTN02.0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198(W)×111.696(H) mm, outline size of 211.1(W)×128.4(H)×7.1(D) mm, viewing area size of 201.0(W)×114.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 255g (Typ.). As a TN, Normally White, Transmissive LCM product, G090VTN02.0 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. G090VTN02.0 utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

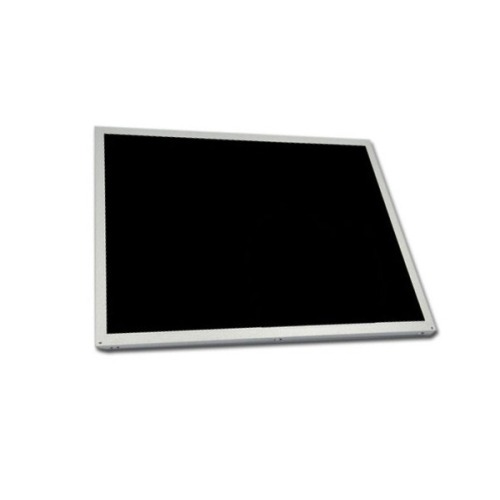

Product Picture

Application
