AUO 4 inch Analog TFT-LCD A040CN01 V3

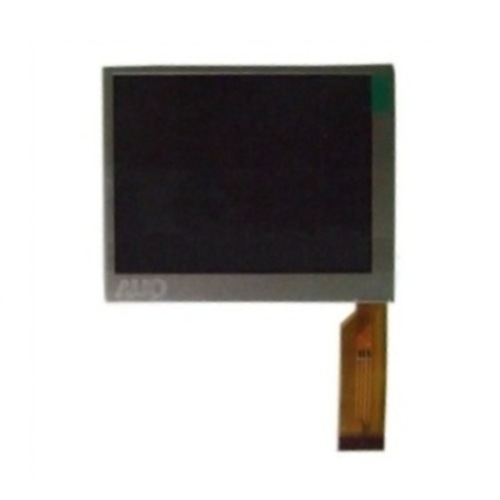

A040CN01 V3 (Alias: A040CN01 V.3) is a 4.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 80°C .This AUO TFT-LCD is a 4.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. A040CN01 V3 supports display 480×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 82.11(W)×61.77(H) mm, outline size of 95.35(W)×77(H) mm, viewing area size of 84.41(W)×64.07(H) mm, net weight of 50.0±5.0g. As a TN, Normally White, Transmissive LCM product, A040CN01 V3 can provides 300 cd/m² display brightness 150:1 transimissive contrast ratio, 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A040CN01 V3 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 5/5/15/-9.5V (Typ.)(VCC/AVDD/VGH/VGL).

We are able to offer AD board for this display to support VGA video input.

Packing Information

Carton Package

1. Max. Capacity: 360 pcs LCD Modules / per carton

2. Max. Weight: 14 kg / per carton
3. The outside dimension of carton is 520(L) mm x 340(W) mm x 250(H) mm
