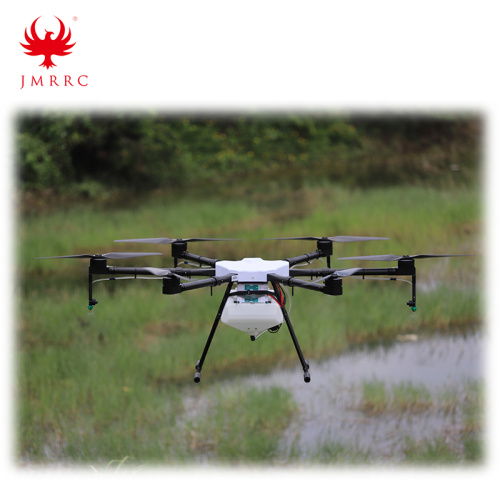

V1650 16L/16KG Agriculture Pesticide Spray Drone JMRRC

16L/KG Agriculture Spraying Drone UAV Frame V1650 Foldable Hexacopter Heavy Big Payload Crop Sprayer Fumigation Drone JMRRC

Drone Specification:

Model: JMR-V1650

Tank capacity: 16L

Drone net weight: 13.5kg

Max take-off weight: 45kg

Drone dimension: 180*158*60cm

Drone dimension (folded): 92*80*60cm

Control radius: 3000 meters

Max flight height: 30 meters

Spraying width: 4-5.5 meters

Flight speed: 1-9 m/s

Hovering time (no load): 23min

Hovering time (load 16kg): 10min

* Hovering time tested by using 2pcs of 6S 22000mAh lipo battery, JIYI K++ flight controller, full payload weight is 35.5kg.

Drone Power System Including:

8318 120KV motor * 6pcs

12S ESC * 6pcs

32inch foldable propeller with adaptor * 6pcs (2CW+2CCW)

JIYI K++ flight controller

Skydroid H12 remote controller with FPV

Drone Function List:

Flight mode: Manual / GPS

Spray mode: Manual / A-B point / Airway

Empty tank warming: yes

Continue spray: yes

Low battery alarm: Landing / return to home

FPV (real time video): IP67 waterproof camera

Crop App: Android APP

* Optional hardware request
