PDB 300 Power Distribution Board

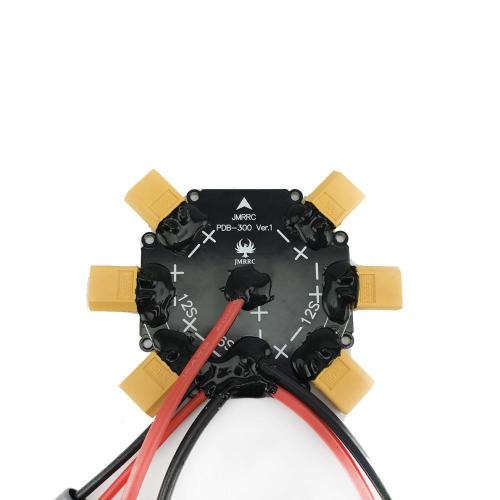

PDB-300 Power Distribution Board for Heavy Load Agricultural Spraying Drone and Heavy Payload Flight Platform.  5OZ Copper plated can bearing max 200A continuous current. 2 wires connection methods for single 12S,14S (6S) battery or 2 of 6S battery in series connect. 6 output solde point for ESC( Brushless Motor) , And 1 12S~14S or 1 6S output for Flight Controller or Other Module Power.  This is a Small size power distribution board for Quad Copter .It is soldered with XT60 plugs and input wires. The soldered point covered by silicon sealed glue to prevent the short circuit.

• 5OZ Copper Plated For  Heavy Payload Drones.
• For Quad Or Hexa Drones
• 2 of wires connection method for 3~6S Or 12S Batteries.
• XT60 output plugs soldered.
• AWG10 Power input wires soldered (28CM)

Diagrams:

Measurement:
