Drone Power Distribution Board
- Payment Type:
- T/T, Paypal
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 3000/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Port: | Shenzhen |
Product Description
Product Description

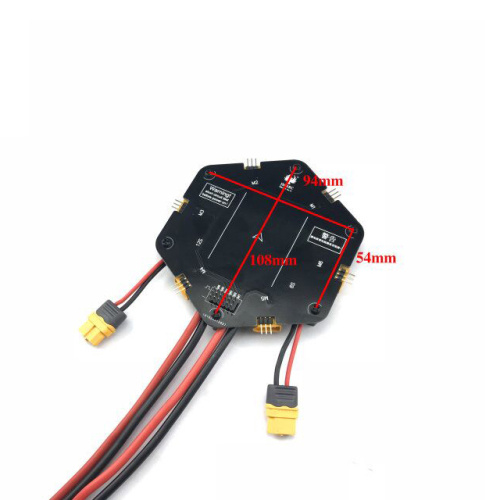

PDB-200 Power Distribution Board for Heavy Load Agricultural Spraying Drone and Heavy Payload Flight Platform. 6OZ Copper plated can bearing max 200A continuous current. 2 wires connection methods for single 12S~14S (6S) battery or 2 of 6S battery in series connect. 6 output solde point for ESC( Brushless Motor) , And 1 12S~14S or 1 6S output for Flight Controller or Other Module Power.
- 5OZ Copper Plated For Heavy Payload Drones.
- 2 Layers Design For Power Distribution and ESC signals HUB.
- For Quad Or Hexa Drones
- 2 of wires connection method for 3~6S Or 12S Batteries.
- XT60 output plugs soldered.
- AWG10 Power input wires soldered (28CM)
Diagrams:
