underwater propulsion system for ROV AUV USV SUP
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100 per month |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Air |
Full sealing design for Underwater Proulsion applications.Work in river, lake,Ocean enviroments. Such as ROV,AUV,USV and customized submersible devices. If give 5.85kgf forward and 2.95kgf thrust for each system.
you can combine 2 or 3,4+ Underwater Propulsion Systems for bigger device.
- Anti-corrosions,Rotary dynamic sealing and Outside materials is stanless steel, Fairing materials is POM.
- At 165W give 3.5kgf thrust, high effiency.
- Compatible with PWM/FOC ESC.
- Brushless Motor.
- Maintenance Free design.
-
N.W only 965g.
|

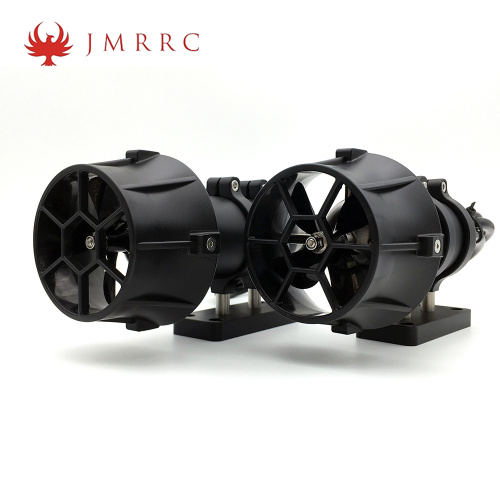

TH60 Under water propulsion System |
|||
|
Model Number |
TH60 |
Fairing materials |
POM |
|
Ver. No. |
2020-V1.0 |
Prop. materials |
PC |
|
Motor Type |
Inner rotor brushless motor |
Wire skin materials |
TUP |
|
Sealing type |
Maintenance-free fully sealed |
||
|
leakproof structure |
Rotary dynamic seal |
Wires materials |
Tinned copper wire |
|
Max. Thrust |
5.85kgf（CW） 2.95kgf（CCW） |
Other parts materials |
316L Stanless steel |
Rated Voltage
24VDC
Mount materials
POM
Working Voltage
Outshell materials
Al. Alloy 6061
Rated power
380W
Propeller type
CW/CCW
rated current
16Amps
lPressure depth
200m
Min. Trust
0.01kgf
ESC
Extraposition
11.1-25.2VDC
Wires spec.
OD.8.5mm L:1000mm Pins：3*2.5mm²
Main shaft materials
316L Stanless steel
N.W.
Diam. of propeller
60mm/ quadfoil
Work Temperatures
Storage：0-40℃ Work ：0-38℃
965g
