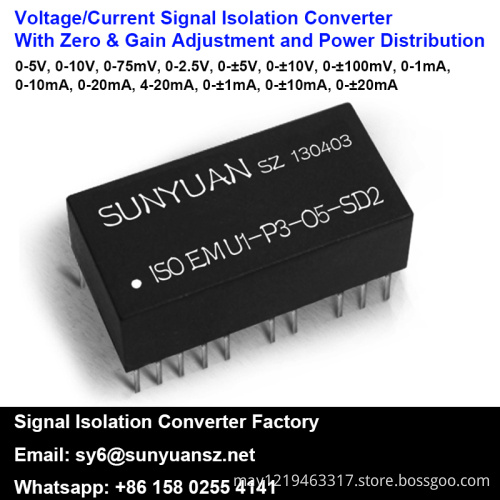

Zero Gain Adjustable Analog Signal Isolation Distributor

Zero Gain Adjustable Analog Signal Isolation Distributor

Features:

● Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
● Power distribution in input end for function expansion: 5V,12V,15VDC
● Isolated amplification and conversion on analog signals: 0-75mV/0-10V/0-1mA/4-20mA
● Precision grade：0.1, 0.2; nonlinearity grade (in full measuring range) <0.2%.
● Isolation power among auxiliary power, analog input, output: 3KVDC
● Auxiliary power: 5V,12V,15V,24VDC,etc single power.
● Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
● Low cost, compact DIP 24Pin, UL94V-0 standard flame retardant package.
● Industrial Temperature range: -20 ~ +70 ℃

Application:

● Isolated power distribution for passive sensors and signals acquisition and transmission.
● Distribute power for pre-amplification, electric bridge and other circuits to collect signals.
● Isolated data acquisition of analog signals from PLC, DCS.
● Analog signal GND wire anti-interference and data isolated acquisition.
● DC current/voltage signal isolation, conversion and amplification.
● Long-distance isolated transmission of industrial site signals.
● Meters, instruments and sensors signal acquisition and transmission.
● Power monitoring control, medical equipments isolated safety bar.

Model Selection:
