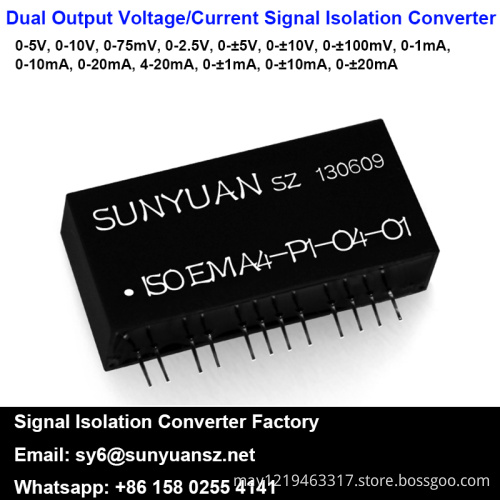

One Input & Two Output Voltage/Current Isolation Converters

Features:

● Low cost, small size. Directly soldered on the PCB board mount. SIP 16 anti- fire UL94V-0 package

● Easy to use, no zero adjustment except external gain adjustment.

● Full range with high linearity. (Non-linearity <0.2%)

● Power / signal input / two-way signal output，isolation 3000VDC, four-port isolated.

● Auxiliary power supply: 5V, 12V, 15V, 24V.

● SIP-16 meets UL94V-0 flame retardant package.

● 0-75mV/0-5V/0-10V/0-±100mV/0-±10Vvoltage signal or 0-10mA/4-20mA/0-±20mA current signal isolation, amplifier and converter

● Temperature range: -45~+85 ℃

Application:

● Divided and monitor the senor signal

● Industrial area signal isolation, conversion, amplification and long-term transmission

● 4-20mA signal one in two out ground interference suppression

● Analog signal ground interference suppression, isolation and collected of data.

● Power monitoring, medical device isolation monitoring barrier

● Detection of instrument, meter and sensor's signal transceiver

● 4-20mA/0-5V and other signal isolation, distribution and transformation

● Industrial site analog and digital signal to coexist monitoring and transmission

Model Selection:

Models
