DC Signal Isolation Amplifier Zero Gain Adjustment

USD17.5

1-999 Piece/Pieces
USD14.7

≥1000 Piece/Pieces

Payment Type:: T/T, Paypal

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3~5 Days

Transportation:: Express delivery

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	50000pcs/month
Payment Type:	T/T,Paypal
Incoterm:	EXW
Certificate:	ISO9001:2015
Transportation:	Express delivery
Port:	Shenzhen

Product Description

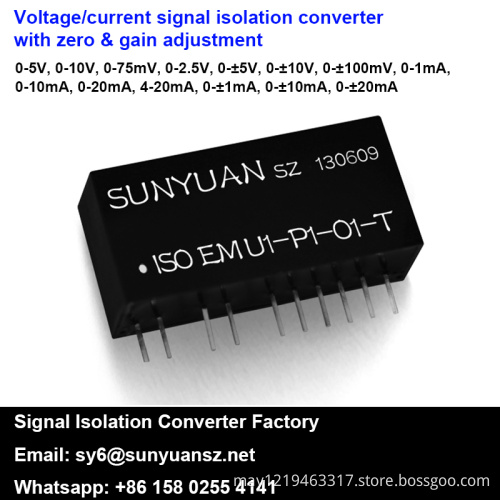

DC Signal Isolation Amplifier Zero Gain Adjustment

Features:

● Precision grade: 0.1, 0.2, 0.5, nonlinearity grade (in full measuring range) <0.2%.
● Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
● Isolation power among auxiliary power, analog input, output: 3000VDC
● Auxiliary power: 5V,12V,15V,24VDC, etc.
● Isolation, amplification and conversion among 0-75mV/ 0-5V/ 0-10V/ 0-1mA/ 0-20mA/ 4-20mA analog signal.
● Industrial temperature range: -20 ~ +70 ℃
● Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
● Low cost, compact SIP 12Pin, UL94V-0 standard flame retardant package.

Application:

● DC current/voltage signal isolation, conversion and amplification.

● Long-distance isolated transmission of industrial site signals.

● Analog signal GND wire anti-interference and data isolated acquisition.

● Meters, instruments and sensors signal acquisition and transmission.

● Isolated data acquisition of analog signals from PLC, DCS.

● VFD/transducer signal long-distance transmission without distortion.

● Power monitoring control, medical equipments isolated safety bar.

● 4-20mA sensor analog signal 1x2, 2x2, 1x4 isolated amplification and transmission.

Model Selection:

Model Selection
